SC (B) 10 type 6 ~ 10kV epoxy resin cast dry-type transformer

This product has a wide range of application fields, especially suitable for places with high fire protection requirements, such as mines, oil fields, subways, power plants, schools, hospitals, business centers, high-rise buildings and all indoor configuration systems.

0771-3860772

products detial

What we can do ? different country different requirement all we can offer.

Mid-voltage ( kV)

3.6~35kv

(E.g. 35,33,24,22,20,18,15.75,13.8,13.2,12,11,10.5,10,7.2,6.6,6.3,6 etc.)

To Low voltage ( V)

100-660V

(E.g. 100,110,115,120,127,208,200,220,230,240,346,380,400,410,415,440,480,660 etc.)

Frequency (HZ)

50Hz or 60Hz

SC (B) 10 type 6 ~ 10kV epoxy resin cast dry-type transformer

1.Overview

2.Model and description

SC (b) 10 port / 10

10 - voltage level at high voltage side (kV)

Port rated passenger capacity (kVA)

11 - Design serial number

B-low voltage foil coil

C-shaped solid pouring

S-three phase

3.Use environment

◆ the installation height shall not exceed 1000m above sea level;

The waveform of power supply voltage is similar to sine wave;

◆ symmetry of polyphase power supply voltage: the power supply voltage connected to polyphase transformer shall be approximately symmetrical.

◆ ambient temperature:

O maximum temperature + 40℃; Maximum daily average temperature + 30℃; Maximum annual average temperature + 20℃.

O minimum temperature - 30℃ (applicable to indoor transformer).

5、 Technical parameters

Rated capacity (kVA)	Voltage combination			Connection group logo number	Loss (120° kw)		No load current (%)	Short circuit impedance (%)	Weight (kg)
Rated capacity (kVA)	HV(kA)	High pressure connection range	LV(kA)		No load	load	No load current (%)		Oil weight	Gross weight
30	6 6.3 6.6 10 10.5 11	士5%±2x2.5%	0.4	Yyno Dyn11	0.71	0.19	1.6		250	320
50					1	0.27	1.4		370	460
63					1.38	0.37	1.2		460	550
80					1.57	0.4	1.1		49o	580
100					1.85	0.47	1.0		570	680
125					2.13	0.54	1.0		640	750
160					2.52	0.62	0.9		775	890
200					2.75	0.72	0.8		895	1030
250					3.47	0.88	0.8		1100	1250
315					3.99	0.98	0.7		1200	1350
400					4.88	1.16	0.7		1460	1610
500					5.87	1.34	0.6		1680	1840
630					5.96	1.3	0.6		1800	1980
800					6.95	1.52	0.5		2130	2310
1000					8.13	1.77	0.45		2520	2720
1250					9.69	2.09	0.45		3075	3300
1600					11.73	2.45	0.45		3670	3900
2000					14.45	3.32	0.4		4420	4670
2500					17.17	4.0	0.4		5310	5580

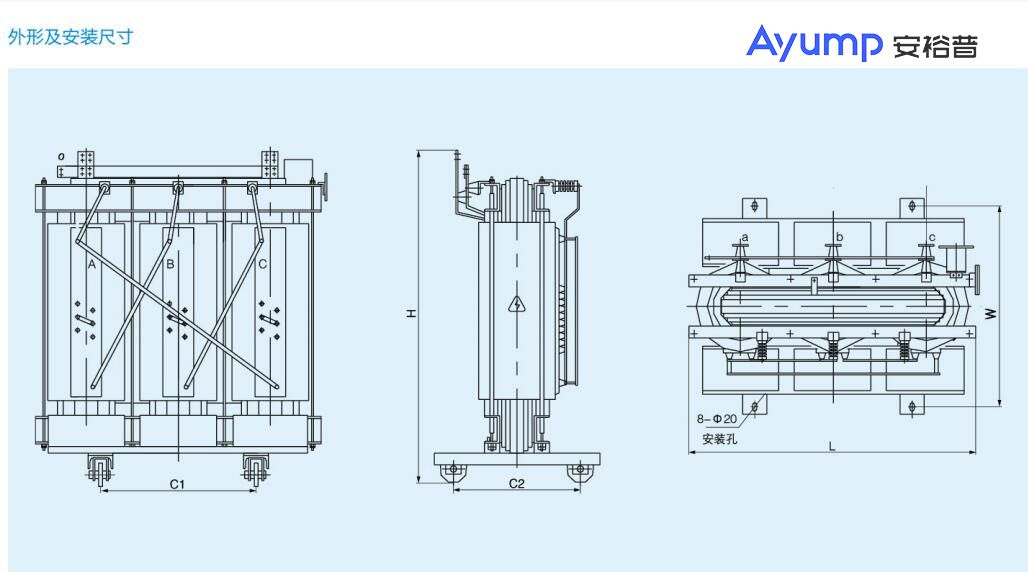

Outline overall and installing dimensions

Rated capacity (kA)	outline overall and installing dimensions (mm)
Rated capacity (kA)	L	w	H	c1	C2
30	660	450	640	300	400
50	770	500	730	400	400
63	820	500	770	400	450
80	820	500	770	400	450
100	880	500	800	400	450
125	930	500	830	400	450
160	1000	660	970	550	660
200	1020	750	1105	550	660
250	1130	750	1140	550	660
315	1140	7560	1115	550	660
400	1190	750	1220	660	660
500	1220	780	1280	660	720
630	1350	800	1300	660	720
800	1400	800	1360	820	820
1000	1460	900	1450	820	820
1250	1570	900	1540	820	820
1600	1610	1050	1660	820	950
2000	1720	1050	1770	950	950
2500	1780	1050	1950	950	950
