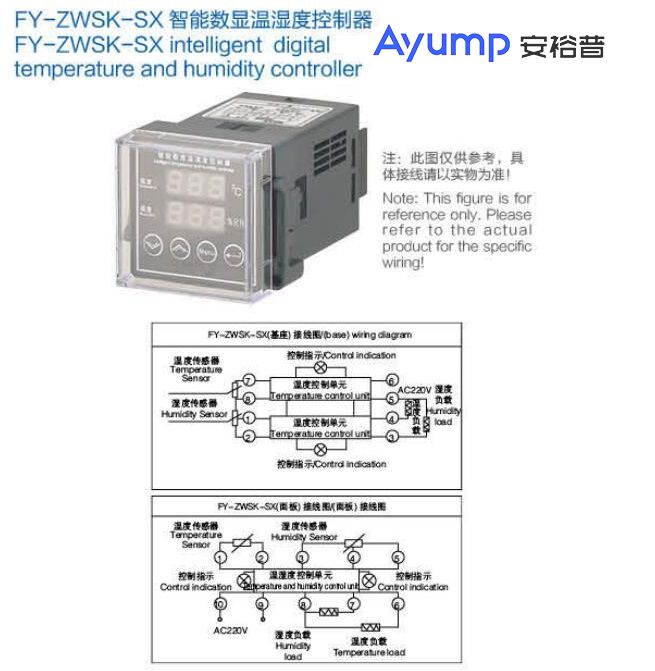

FY-ZWSK- SX intelligent digital temperature and humidity controller

Temperature and humidity controller model meaning

Installation method

◆Pedestal type: Fix the 8-pin relay base to the 35mm rail or directy fix it on the mounting plate through the mounting screw hole.

◆Embedded: 45 x 45mm2 is nstalled on the mounting panel, and the controller is fxed on the panel through the mounting bracket.

FY-ZWSK- SX intelligent digital temperature and humidity controller

The main function

FY-ZWSK-SX has one-way temperature digital display control, one-way, humidity digital display control, and two-way output, which can monitor the temperature and humidity of the tested environment in real fime, so that the ambient temperature and humidity indicators meet the working requirements and can be effective. Prevent condensation from occuring. The temperature and humidity settings or measured values are displayed numerically,and the user sets the temperature and humidity control values by buttons. The product integrates the heating and heating type and the fan cooling type.

Technical characteristics

◆Power supply voltage: AC22DV 50Hz;

◆Measurement control range: Temperature (-50-99C )Accuracy: +1C ;

◆Humidity (0~ 100%RH) accuracy:土3%RH (10%RH-99%RH);

◆Parameter setting: upper limit: temperature ( 49-99C ) humidity (2-99%RH); lower limit:temperature (-50-98C ) wet (1-98%RH) ；

◆Sensor error correction: Temperature: -50-99C Humidity: 0~100%;

◆Display mode: three LED digital tubes on the top and botfom display, 1 decimal place;

◆Response speed: typical value≤5s;

◆Load relay, output capacity: AC220V/7A (resitive load) two active outputs;

◆Volume: 48x 48 x 78mm³.
