products detial

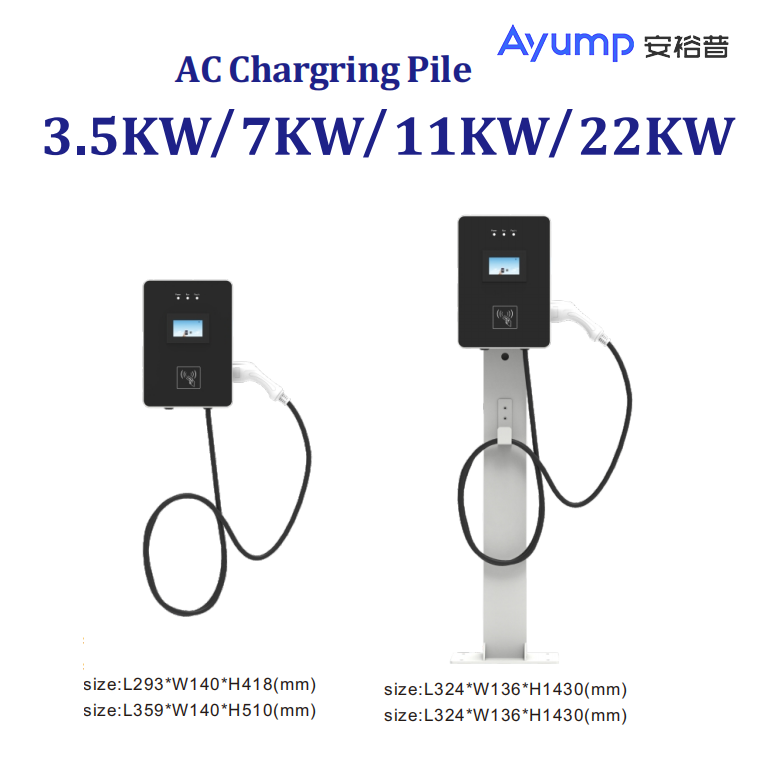

| 3.5KW/7KW/11KW/22KW Rectangle AC Chargring Pile | |||||
| s.No | Parameters | Requirements | |||
| General Requiremerts | |||||
| 1 | Ev Charger Type | AC | |||
| 2 | Charger Capacity | 3.5w | 7Kw | 11KW | 22KW |
| 3 | Product Model NO. | ENC-AYP-ACB/L003P5A ANSI-AYP-ACB/L003P5A | ENC-AYP-ACB/L007A ANSI-AYP-ACB/L007A | ENC-AYP-ACB/L011A ANSl-AYP-ACB/L011A | ENC-AYP-ACB/L022A |
| 4 | Mounting | Wall-Mounted/Column Type | |||
| lnput Requirements | |||||
| 5 | AC Supply System | Single-Phase,3 Wire AC System | Single-Phase,3 Wire AC system(ANSl) Three-Plase, 5 Wire AC system(ENC) | ||
| 6 | Nominal Input Voltage | AC220V±15%(ENC) AC240V±15%(ANSI) | AC380V±15%(ENC) AC240V±15%(ANSI) | AC380V±15% | |
| Input Frequency | 50±3Hz | ||||
| Environmentad Requirements | |||||
| 8 | Ambient Temperature Range | -25 to 55℃ | |||
| 9 | Ambient Humidity | 5 to 95% | |||
| 10 | Storage Temperaturo | -40 to70℃ | |||
| Mochanical Requirements | |||||
| 11 | IP Ratings | IP55 | |||
| 12 | Cooling | Natural Cooling | |||
| Output Requirements | |||||
| 13 | Number of Outputs | 1 | |||
| 14 | Typo of Each Ouput | AC220V士15%(ENC) AC240V士15%(ANSI) | AC380V±15%(ENC) AC240V±15%(ANSI) | AC380V±15% | |
| 15 | Single Output Max.Current | 16Amp | 32 Amp | 16Amp/50 Amp | 32Amp |
| User Interface& Display Requirements | |||||
| 16 | Display & Touch-Screen Size | 4.3 Inches Touch Screen | |||
| 17 | User Aulthentication | Mobile Application or User Interfacel/ QR Code/RFID Card /Password Login | |||
| 18 | Metering Information | Consumption Units | |||
| Communication Requirements | |||||
| 19 | Communication botwoon EVSE and Central Server | OCPP 1.6J Protocol (Optional) | |||
| 20 | Interface betweon Charger and CMS | Etherneu/3G/4G/WIFI (Optional) | |||
| Protection & Safety Requirements | |||||
| 21 | Executivo Standard | IEC62196 2017,IEC61861 2017,SAEJ1772,etc. | |||
| 22 | Safety Parameters | Over Current,Under Voltage,Residual Current,Surge Protection,Leakage Protection,Short Circuit,Over Temperature, etc. | |||
Features:
Delicate appearance,simple operation, convenientinstallation;
High efficiency,reliable and stable performance;
Friendly interaction interface, 4.3-inch/7 inch color touch screen(optional);
Support multiple modes of charging, operation management and payment;
Support Ethernet or wirelesstelecommunication;
Support RFID Card/OCPP 1.6J(optional);
Support Type-2 connector(or Socket)optional;.
Overload integrated Protection;
Support online data upgrade.
Applicable Scenes:
They are suitable for occasions such as private villas, residential areas,commercial office buildings,urban complex parking lots or urban public charging stations that can chargeslowly for a long time; or applied for 4S stores of new energy vehicles,workshopdebugging areas,road rescue of new energy vehicles and other occasions that requirefrequent change of charging station sites or temporary power supply.
