FY-NK (TH) dew point controller

Temperature and humidity controller model meaning

Installation method

◆Pedestal type: Fix the 8-pin relay base to the 35mm rail or directy fix it on the mounting plate through the mounting screw hole.

◆Embedded: 45 x 45mm2 is nstalled on the mounting panel, and the controller is fxed on the panel through the mounting bracket.

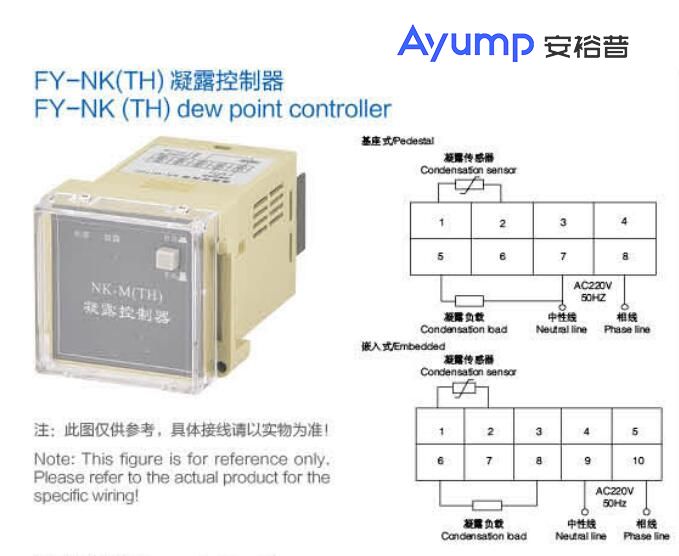

FY-NK (TH) dew point controller

Note: This figure is for reference only. Please refer to the actual product for the specific wiring!

The main function

All the way condensation control, when the humidity is too large or there will be condensation, start the heater or fan to work, destroy the conditions that produce condensation.

Technical characteristics

◆Power supply: AC220V±10% 50Hz;

◆Temperature control: 88% RH±5% RH (at 20℃ );

◆Response speed: typical value≤5s;

◆Load control: manual / automatic conversion;

◆Output: resistive AC220V/5A (active);

◆Dimensions:48 x 48 x 78mm.
