FY-WSK-G(TH) temperature and humidity controller

Temperature and humidity controller model meaning

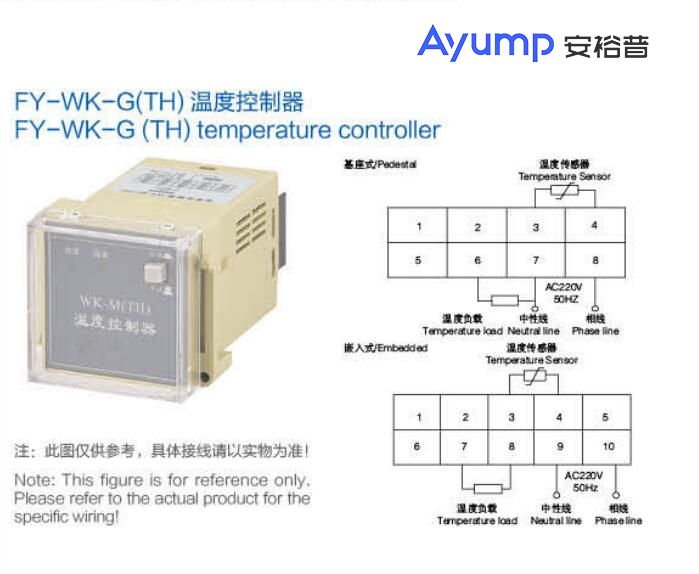

Installation method

◆Pedestal type: Fix the 8-pin relay base to the 35mm rail or directy fix it on the mounting plate through the mounting screw hole.

◆Embedded: 45 x 45mm2 is nstalled on the mounting panel, and the controller is fxed on the panel through the mounting bracket.

FY-WSK-G(TH) temperature and humidity controller

The main function

Condensation control unit, a temperature control unit, can control the temperature and humidity of the environment in real time, automatically start the load, ensure that the temperature index meets the working standard, and at the same time effectively prevent the condensation from occurring, and separate the heating type and cooling type.

Technical characteristics

◆Power supply: AC220V士10% 50Hz;

◆Condensation start control: 88% RH±5% RH (at 20℃);

◆Response speed: typical value≤5s;

◆Control range: The control value is fixed according to the user's requirements. The factory seting (-30-70℃ )is4-6C.

◆Load control: manual 1 automatic conversion;

◆Output: Resistive AC220V/5Ax 2 (active);

◆Dimensions: 48 x 48 x 78mm3.
